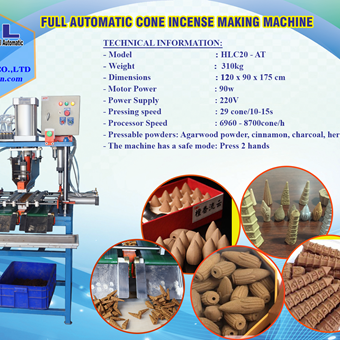

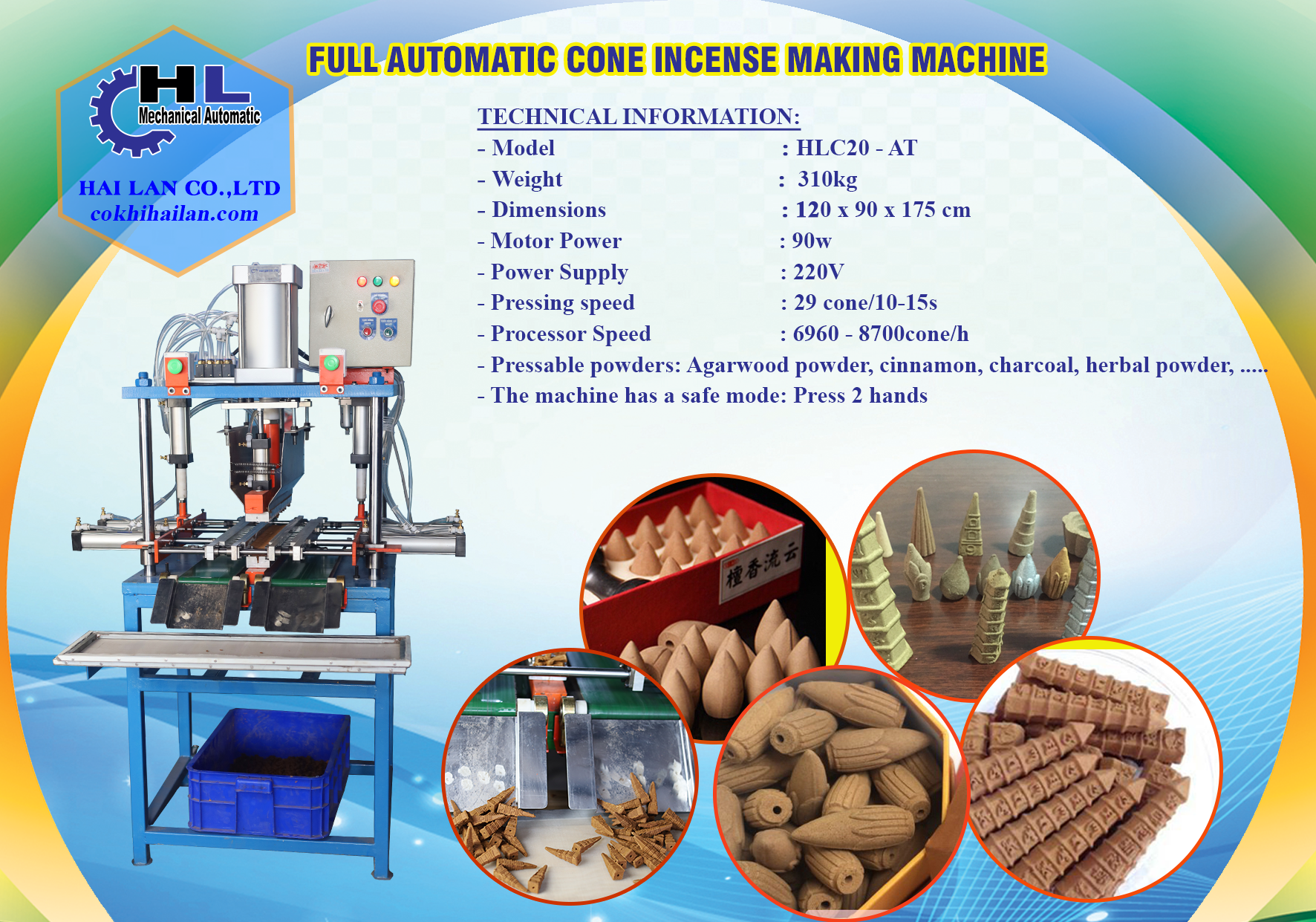

FULL AUTOMATIC CONE INCENSE MAKING MACHINE

I, INTRODUCTION OF FULL AUTOMATIC CONE INCENSE MAKING MACHINE

 Full automatic cone incense pressing mạchine is designed and produced by the technical department of Hai Lan Company. full automatic cone incense pressing mạchine cone press is used to create many types of incense such as: cone lotus incense, pyramid shaped, hexagonal pyramid shaped, engraved logo and words incense, etc....

 The customers can create a variety of different cone of sizes and shapes from this machine. Beside, the customers can build their own brand with bud products.

 Full automatic cone incense pressing machine. The mechanism of action: auto pressing, hole drilling, mold separating, auto cone removing.

 Full automatic cone incense pressing mạchine works with pressing speed 29 cone within 10-15 second, about 3600 cone per hour, operates with high capacity, which helps us save greatly labor costs.

II, HOW TO OPERATE FULL AUTOMATIC CONE INCENSE PRESSING MẠCHINE

There are 5 steps to operate the machine:

   - Step 1: Provide pneumatic source for the machine.

       (The customers should use the pneumatic with a capacity of 2HP (1.5kw) and the air drum with a capacity of over 951 liters which helps the customers can both run and clean the machine without lack of air during the operation)

   - Step 2: Plug in a 1-phase 220v power source to Full automatic cone incense pressing mạchine.

   - Step 3: Put the pre-pressed incense powder into the mold.

   - Step 4: Use two hands to press the operate button.

(If we do the step 3 and step 4 continuously, the machine will continuously operate too)

   - Step 5: Take the tray containing compressed cone to dry.

Note: After the compressed cone  have created to the products, the edges of the cone will break when they dry or if you want more beautiful cone, you can use a sieve to gently shake, these edges will fall out. If we want to be faster, we can use a sifter.

III, EXCELLENT ADVANTAGES OF FULL AUTOMATIC CONE INCENSE PRESSING MẠCHINE

   -  Full automatic cone incense pressing mạchine operates with high productivity: 3600 cone per hour.

   -  The machine is designed with safe functions: Operating by two hands which helps no stucks due to carelessness of the operator.

   -  The machine uses PLC control system, programmed to control each stroke.. The electrical system is synchronized, easy to replace and repair.

   -  Full automatic cone incense pressing mạchine is completely machined by CNC, so the accuracy is high.

   -  The details of the machine are mass produced, therefor their parts are easy to synchronize and replace.

   -  The engine of the machine is designed firmly, without vibration when operating.

   -  Full automatic cone incense pressing mạchine is designed with 4 sliders, using pipe of marbles, so the machine moves up and down very gently, without mechanical jam during operating in a long time.

   -  The machine uses the large cylinder pressure of the mold, about 1,600kg. Due to the high pressure, the edges of the cone will break when they dry or if you want more beautiful cone.

   -  When operating the machine: Excess powder and buds are separated, do not mix. Excess powder can be reused by putting them in the extruder.

   -  Full automatic cone incense pressing mạchine needs only one operator, so the labor costs are greatly reduced.
